Description

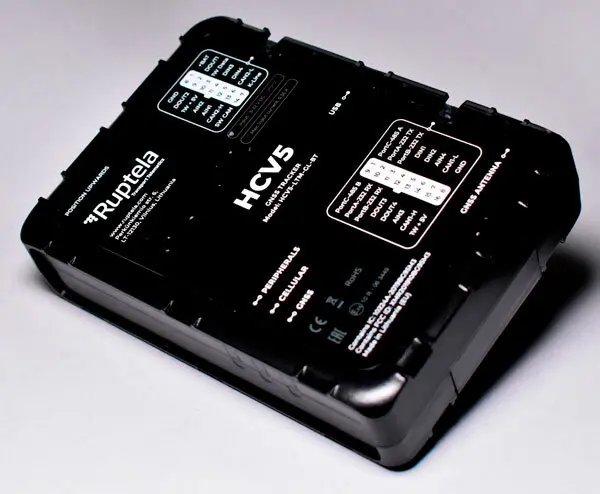

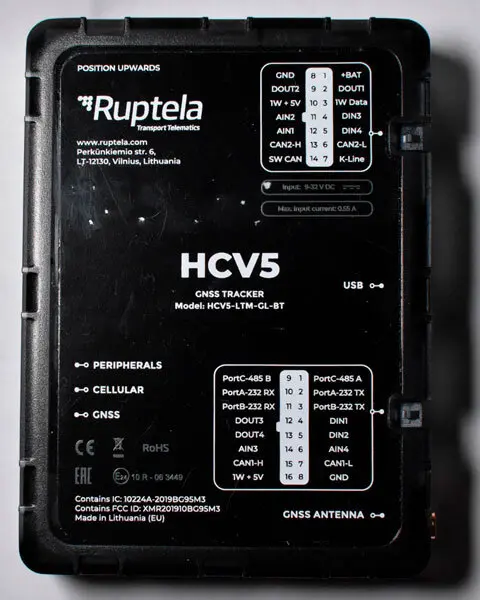

HCV5 is an advanced GPS tracking device that has been designed for various types of heavy commercial vehicles, such as trucks, agricultural vehicles, construction vehicles, and special machinery. The device has been developed to track and monitor vehicle activity. In addition, In addition to providing GPS tracking information, this device also obtains data from the onboard computer (CANbus) of vehicles with FMS and J1708 standards.
- Cellular specifications: External GNSS antenna and External GNSS antenna. jammer detection
- Interfaces: 2-way audio (requires RuptelaPTT), CANbus port, RS485 port, 2 RS232 ports, EcoDriving
- Connections: 4 digital inputs, 4 digital inputs, 2 analog inputs, Fuel sensors, and Temperature sensors, Compatible with an RFID reader (RuptelaRFID1wire)
- LED indicator: 3G network and GPS status
- Antenna for cellular network & GPS: Compatible with GPS, GLONASS, and GALILEO
- General Characteristics: Temperature Operating range: -35 to +70 °C, Battery charge: 0 to +45 °C, Relative humidity: 5% to 95% without condensation, Power supply range: 10 ÷ 32 VDC, Maximum voltage : 72 V @ 0.1s, Maximum current: 350 mA @ 12VDC, Internal battery: LiPo 3.7 V 1050mAh, Battery and 1-Wire protection against short circuits
Additional information
| Weight | 0.450 kg |
|---|---|
| Dimensions | 11.1 × 7.5 × 2.5 cm |
| Brand | RUPTELA, RUPTELA |
