Description

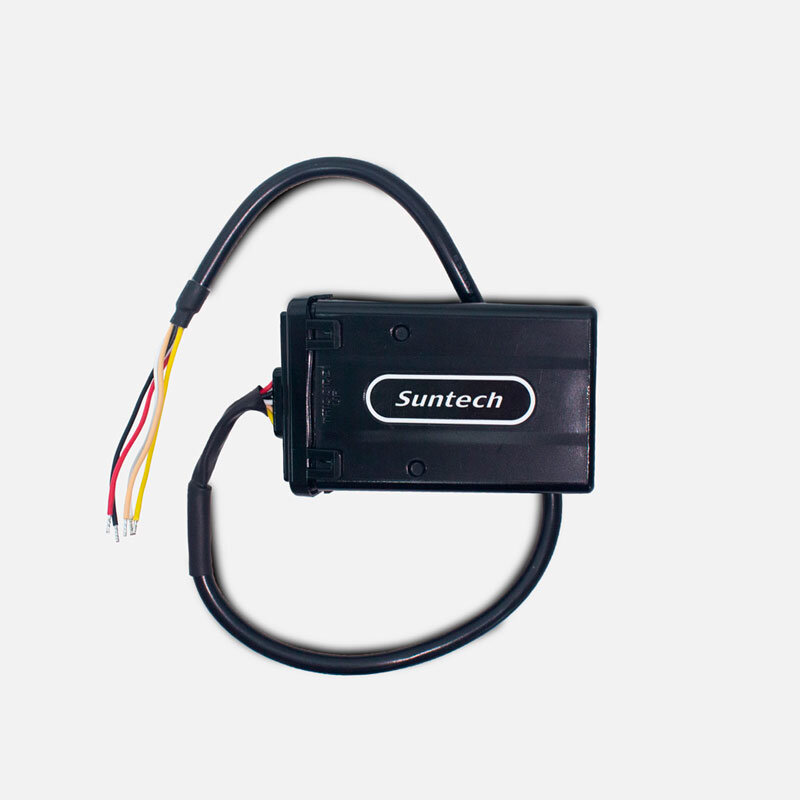

Vehicle tracking telemetry device, ideal for fleet management and vehicle security/logistics applications. This device is a derivative version of the ST3300 model and has internal antennas, a lithium-ion battery, a waterproof enclosure, and all the standard functions of an AVL. It has a 3-axis accelerometer for DPA (Driving Pattern Analysis, including crash and collision alerts) information.
- Cellular Specifications: 3G Network Type, Packet Transfer Rate HSUPA category 6, Max 5.76 Mb/s UL. / HSDPA category 8, Max 7.2 Mb/s DL. / WCDMA PS data, Max 384 kb/s DL/UL, 3G Frequency: 800/850/900/1900/2100MHz / 2G: 850/900/1800/1900MHz
- Interfaces: 3-axis accelerometer (Driving Pattern Analysis (DPA), shock and collision warning)
- Connections: 6-pin cable connector
- LED indicator: 3G network & GPS status
- Antenna for cellular network & GPS: Both Internal
- General Features: M2M Communications, Suntech Unified Protocol, I/O 1-wire / RS232 / IGN / 2 digital inputs / 2 digital outputs / 4.5V external power, TCP, UDP, SMS communication, Jammer Detection, Fine Tracking, Scuti, ST20U or ST25T support, DC power supply 8V~33V Electronic overvoltage and reverse power protection, Rechargeable backup battery 3. 7V, 450 mAh Ni-MH, Temperature range -30°C~+85°C, Weight 115 g (with backup battery), Position accuracy 2.5m CEP / SBAS 2.0m CEP, Cold start <35s / Warm start <30s / Hot start <1s, Sensitivity Tracking -167dBm / Reacquisition -161dBm / Acquisition -149dBm, FCC, IC, PTCRB, NYCE, IFT certifications
Additional information
| Weight | 0.350 kg |
|---|---|
| Dimensions | 9.4 × 5.5 × 2.3 cm |
| Brand | SUNTECH, SUNTECH |
